مشخصات
مدل | AIN51105W | AIN51105S | AIN5165S | AIN51150S | AIN76105S |
ولتاژ اسمی | 51.2 ولت | 51.2 ولت | 51.2 ولت | 51.2 ولت | 76.8V |
ظرفیت اسمی | 105Ah | 105Ah | 65Ah | 150Ah | 105Ah |
Rated Energy | 5370Wh | 5370Wh | 3320Wh | 7680 وات ساعت | 5370Wh |
Maximum Charge Voltage | 58.4 ولت | 58.4 ولت | 58.4 ولت | 58.4 ولت | 87.6 ولت |
حداکثر جریان شارژ | 100A | 100A | 60A | 150A | 100A |
حداکثر جریان تخلیه مداوم | 150A | 150A | 130A | 200A | 200A |
Maximum Peak Discharge Current (30 seconds) | 300A | 300A | 250A | 300A | 300A |
ولتاژ قطع برق را تخلیه کنید | 43.2 ولت | 43.2 ولت | 43.2 ولت | 43.2 ولت | 43.2 ولت |
Driving Mileage | 65-80km | 65-80km | 40-60km | 90-120km | 100-130km |
دمای شارژ | 0 ~ + 55 | 0 ~ + 55 | 0 ~ + 55 | 0 ~ + 55 | 0 ~ + 55 |
دمای تخلیه | -20 ~+60 | -20 ~+60 | -20 ~+60 | -20 ~+60 | -20 ~+60 |
Cycle Life (25℃, 0.5C, 100% DOD) | > 6000 | > 6000 | > 6000 | > 6000 | > 6000 |
Terminals | M8 Nut | M8 Nut | M8 Nut | M8 Nut | M8 Nut |
سطح حفاظت | IP67 | IP65 | IP65 | IP65 | IP65 |
ابعاد (میلی متر) | 547*334*245 | 457*298*253 | 465*243*228 | 675*325*260 | 674*338*275 |
وزن | 48.3kg | 49kg | 32 کیلوگرم | 71kg | 72.8kg |
Communication Protocol | CAN/RS485 | RS485 | RS485 | CAN/RS485 | CAN/RS485 |
ویژگی های کلیدی
1, PET is able to bear 850kg, avoid bulging
2, CCS vehicle-grade craft,integrated wires

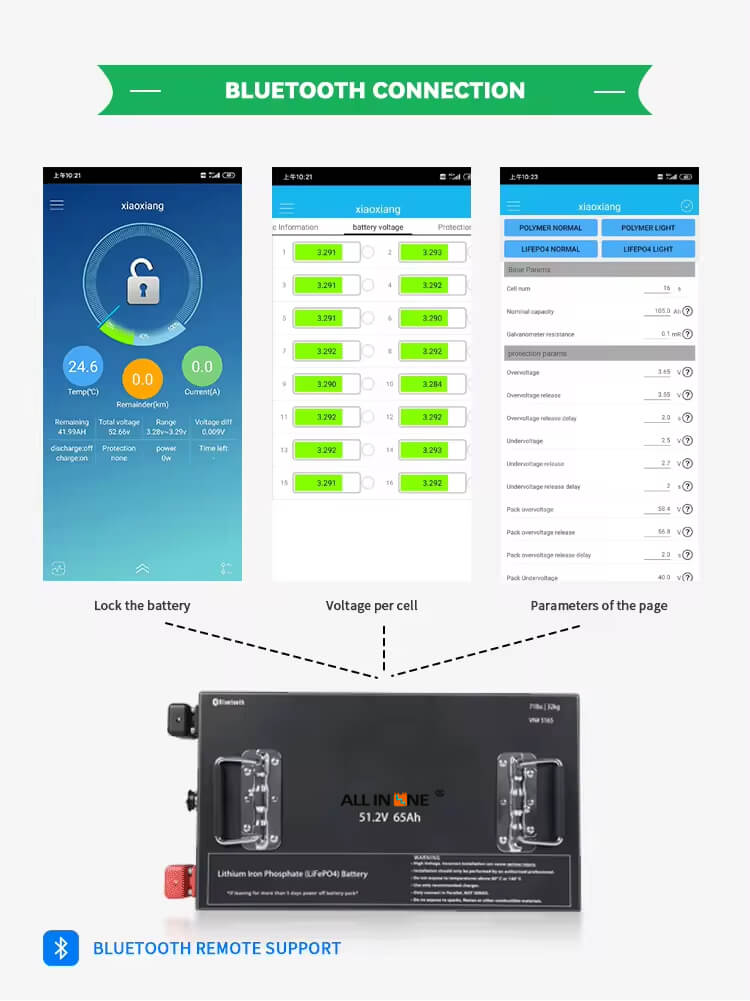

3, Support RS485/CAN/Bluetooth etc
4, 3-4mm metal plates at both side
5, Reserve 1mm width for potential bulging
6, Distributed sampling system to solve sampling impedance problem.
ما قول می دهیم
1. همه محصولات خواهد بود 100٪ تست شده قبل از حمل و نقل برای اطمینان از اینکه محصول هیچ مشکلی در کیفیت ندارد.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.
کاربرد
> Uninterruptible power system > Grid load shifters > Electric Golf Car > Electric vehicles
> Electric motorcycles> Electric forklifts > Electric boats, etc.> Wind-Solar energy system
> Solar street lights > Off-grid energy storage > Household energy storage
> Telecom backup system > Mobile base stations> Emergency backup energy sources
کارخانه ما
بسته بندی و حمل و نقل
سؤالات متداول
Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.
Q2: آیا خدمات پس از فروش ارائه می دهید؟
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.
Q3 مزیت شرکت شما چیست؟
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service
Q4: آیا نصب OEM / ODM را قبول دارید؟
A4: Yes, it is available.
Q5: What is your lead time for mass production?
A5: صحبت عمومی ، حدود 25-30 روز بسته به موارد مختلف پس از پیش پرداخت و تأیید در مورد نمونه ها.
Q6:Are your battery real capacity?
A6: تمام سلول های باتری ما با درجه A ، 100 new ظرفیت جدید و واقعی است.
Q7: آیا شما یک کارخانه هستید یا یک شرکت بازرگانی؟
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.
Q8: چه نوع گواهی هایی دارید؟
A8: اگر مقدار سفارش شما زیاد باشد ، ما می توانیم CE ، ROHS ، FCC ، IEC62133 ، MSDS ، UN38.3 را ارائه دهیم.
