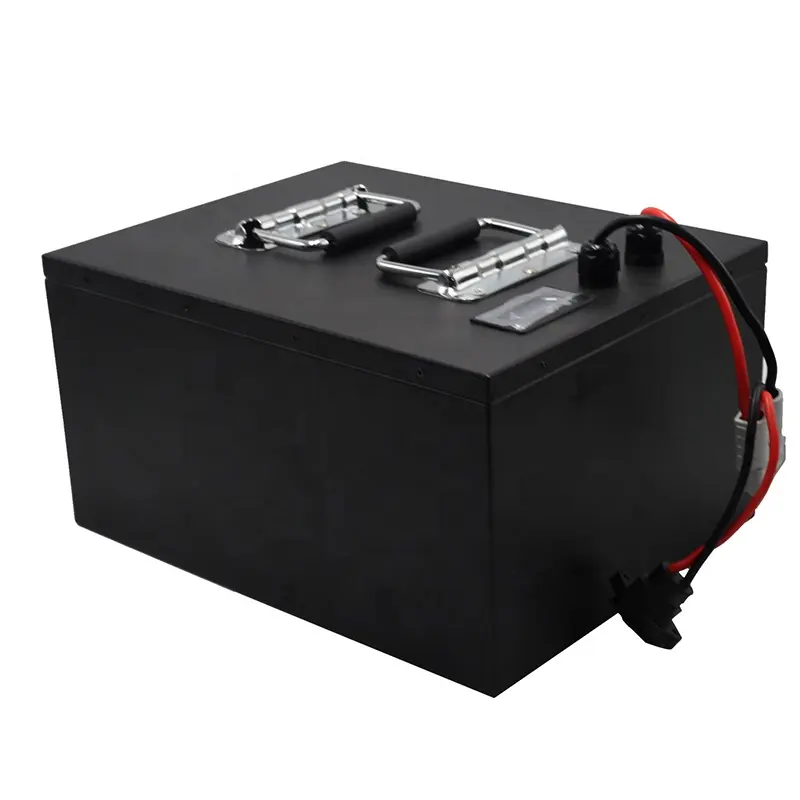

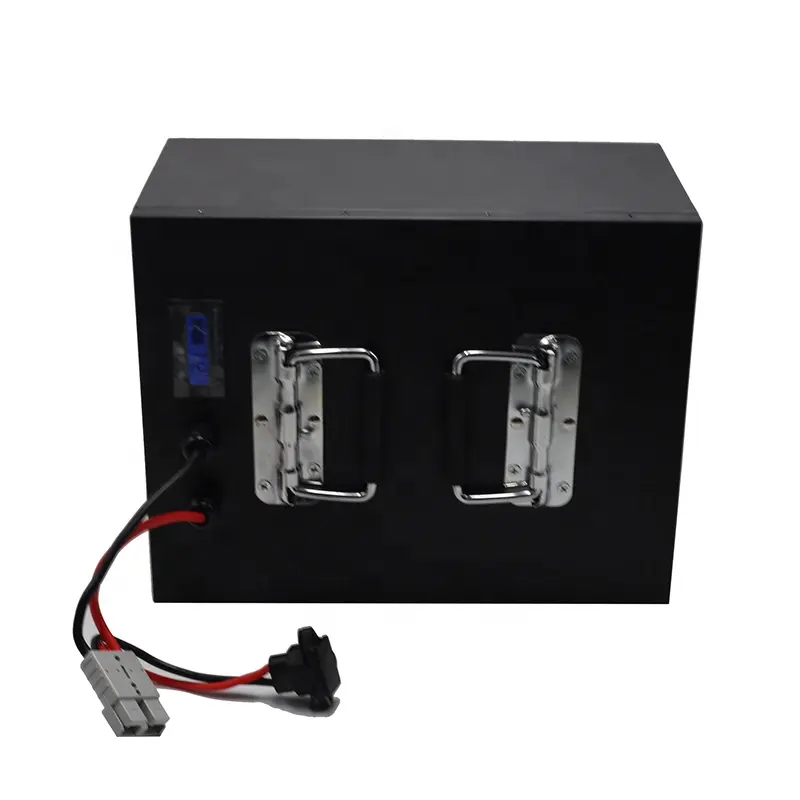

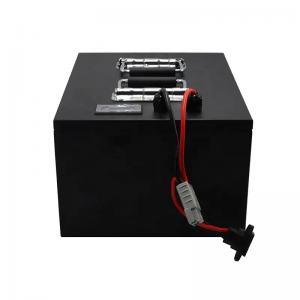

بسته باتری LiFePO4 سفارشی 72 ولت 60 ساعت باتری خودروی الکتریکی بسته یون لیتیوم برای خودروهای برقی

2023-06-06 02:13

مشخصات

نام تجاری	همه در یک
مدل	AIN7260
ضمانتنامه	5 سال
ولتاژ اسمی	76.8V
ظرفیت اسمی	[email protected]/customize
انرژی	4416Wh
مقاومت داخلی	m50mΩ
چرخه زندگی	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
خود تخلیه	3.5 ≤ در ماه در 25 ℃
حداکثر ولتاژ شارژ	87.6 V
حالت شارژ	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
جریان شارژ	30A
حداکثر جریان شارژ	60A
تخلیه جریان	30A
Max. discharge Continuous Current	60A
حداکثر جریان پالس	120A(<3S）
تخلیه ولتاژ قطع شده	60 ولت
دمای شارژ	0 ℃ تا 45 ℃ (32 ℉ تا 113 ℉) @ 60 ± 25 Hum رطوبت نسبی
دمای تخلیه	-20 ℃ تا 60 ℃ (-4 ℉ تا 140 ℉) @ 60 ± 25 Hum رطوبت نسبی
دمای ذخیره سازی	0 ℃ تا 45 ℃ (32 ℉ تا 113 ℉) @ 60 ± 25 Hum رطوبت نسبی
مقاومت در برابر گرد و غبار آب	IP55
سلول و قالب	LFP  60AH 24S1P/customize
پوشش	Metal Case
ابعاد (L * W * H * TH)	شخصی سازی
وزن	50kg
پایانه	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
روش شارژ	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
گواهی	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

یادآور

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

کاربرد

کارخانه ما

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

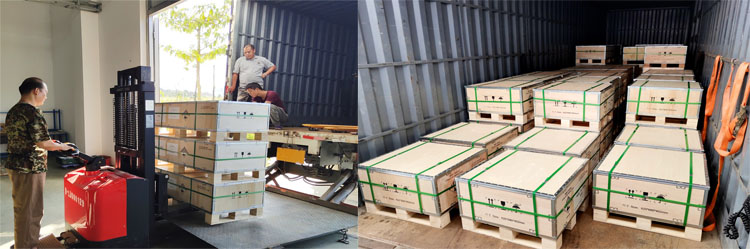

بسته بندی و حمل و نقل

بسته بندی

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

حمل دریایی

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



سؤالات متداول

س: چگونه باید پرداخت کنم؟ چه روش های پرداختی را قبول می کنید؟
A: T/T, PayPal, Western Union.

س: آیا سفارش نمونه قابل قبول است؟
پاسخ: بله ، برای بیشتر باتری ها ، نمونه سفارشات برای تست کیفیت منطقی و قابل قبول است.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. برای آسیب های ایجاد شده ، مانند برآمدگی باتری/جوش داده شده ، بسته باتری بدون BMS محافظ ناشی از شارژ.
