مشخصات
# | مورد | پارامتر | سخنان | ||
1 | ظرفیت اسمی | 90Ah | (25±2)°C, Standard Charge And Discharge | ||
2 | Typical Voltage | 3.2V | |||
3 | AC Impedance Resistance(1KHz) | .50.5mΩ | |||
4 | Standard Charge And Discharge | Charge/Discharge Current | 1C/1C | (25±2)°C | |
Cut Off Voltage Of Charge/Discharge | 3.65V/2.5V | ||||
5 | Maximum Charge/Discharge Current | Continuous Charge/Discharge | 1C/1C | According to continuous/ pulse charge and discharge ammeters | |
Pulse Charge/Discharge(30s) | 3C/3C | ||||
6 | Recommended Scope Of SOC | 10%~90% | N.A | ||
7 | دمای شارژ | 0°C~55°C | According to continuous/ pulse charge and discharge ammeters | ||
8 | دمای تخلیه | -20°C~55°C | |||
9 | دمای ذخیره سازی | Short Term ( Within 1 month) | -20 ° C ~ 45 ° C |
N.A | |
Long Term ( Within 1 year) | 0 درجه سانتیگراد 35 درجه سانتیگراد | ||||
10 | Storage Humidity Range | <95% | |||
11 | Self-discharge rate per month | ≤3%/month | Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC | ||
12 |
بعد، ابعاد، اندازه | عرض | 130.3±0.5mm |
Refer to Appendix ǀ | |
13 | Thickness( 30% SOC) | 36.7 0.5 میلی متر | |||
14 | High( Total) | 200.5 ± 0.5 میلی متر | |||
15 | High( Subject) | 195.5 ± 0.5 میلی متر | |||
16 | Tabs Distance | 67.0 ± 1.0 میلی متر | |||
17 | وزن باتری | 1994±50g |
Attentions
- It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
- Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
- Do not short connect or install the battery with incorrect polarity at any time.
- Do not mix up with cells from different models or manufacturers.
- Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
- Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
- Please wear protective devices such as rubber gloves when operating the battery.
Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.
کاربرد
کارخانه ما

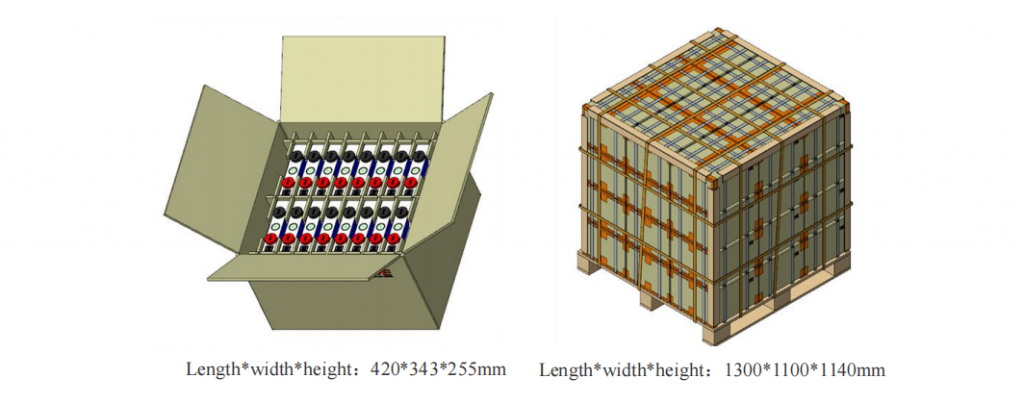

بسته بندی و حمل و نقل
The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.
ذخیره سازی
Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ~ 50%SOC.
سؤالات متداول
Q1 آیا می توانم سفارش نمونه داشته باشم؟
A. بله ، ما از سفارش نمونه برای آزمایش و بررسی کیفیت استقبال می کنیم.
Q2 زمان سرب چیست؟
الف) نمونه به 3 روز زمان نیاز دارد ، زمان تولید انبوه به 5-7 هفته نیاز دارد ، این به مقدار سفارش بستگی دارد.
Q3 آیا محدودیت MOQ دارید؟
بله ، ما MOQ برای تولید انبوه داریم و این به تعداد قسمت های مختلف بستگی دارد. سفارش نمونه 10 c قطعه در دسترس است. MOQ پایین ، 1 قطعه برای بررسی نمونه در دسترس است.
Q4 کالاها را چگونه حمل می کنید و رسیدن به چه مدت زمان لازم است؟
الف) رسیدن 5-7 روز طول می کشد. حمل و نقل هوایی و دریایی نیز اختیاری است.
Q5 چگونه با یک سفارش اقدام کنیم؟
الف) اولا الزامات یا برنامه خود را به ما اطلاع دهید. در مرحله دوم ، ما با توجه به شرایط شما و یا پیشنهادات خود ما نقل قول می کنیم. به طور خاص مشتری نمونه ها را تأیید می کند و برای سفارش رسمی واریز می کند. چهارم: ما تولید را ترتیب می دهیم.
Q6 آیا چاپ آرم من روی محصول مناسب است؟
بله لطفاً قبل از تولید به طور رسمی به ما اطلاع دهید و ابتدا طرح را بر اساس نمونه ما تأیید کنید.
Q7. کدام گواهینامه را دارید؟
پاسخ: ما CE / FCC / ROHS / UN38.3 / MSDS و غیره داریم.
Q8. چگونه در مورد ضمانت؟
A: 3 سال گارانتی
